Examples

Note

This page is abridged from the full SIMION 8.1.1 "Supplemental Documentation" (Help file). The following additional sections can be found in the full version of this page accessible via the "Help > Supplemental Documentation" menu in SIMION 8.1.1:
  • Links to all Examples

Screenshots

Below are many screenshots from SIMION.

General Features

_images/main.png

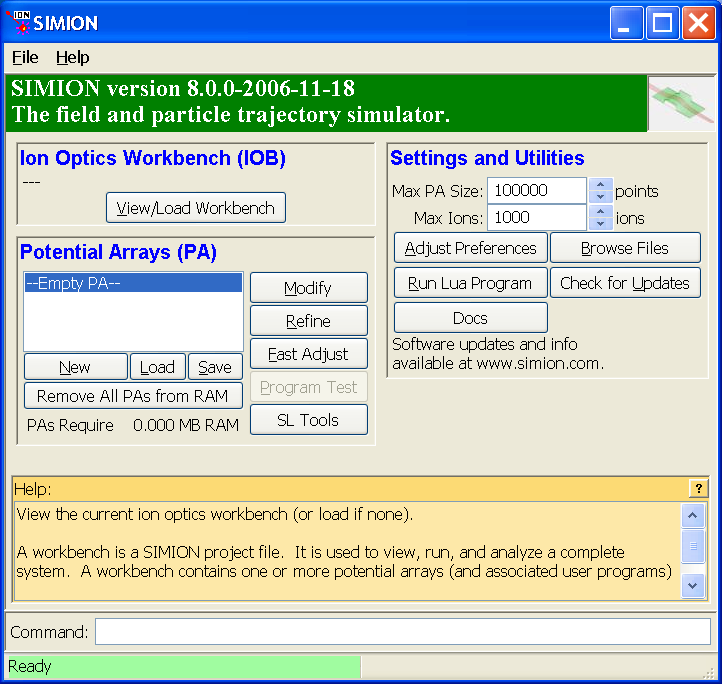

SIMION main menu.

_images/modify3d.png

SIMION Modify geometry screen showing exit section of quadrupole.

_images/trap_modify3d.png

SIMION Modify geometry screen showing ion trap.

_images/fastadj.png

Fast adjust voltages on electrodes.

_images/refine.png

Refining geometry (solving electric field).

_images/s8-gem.png

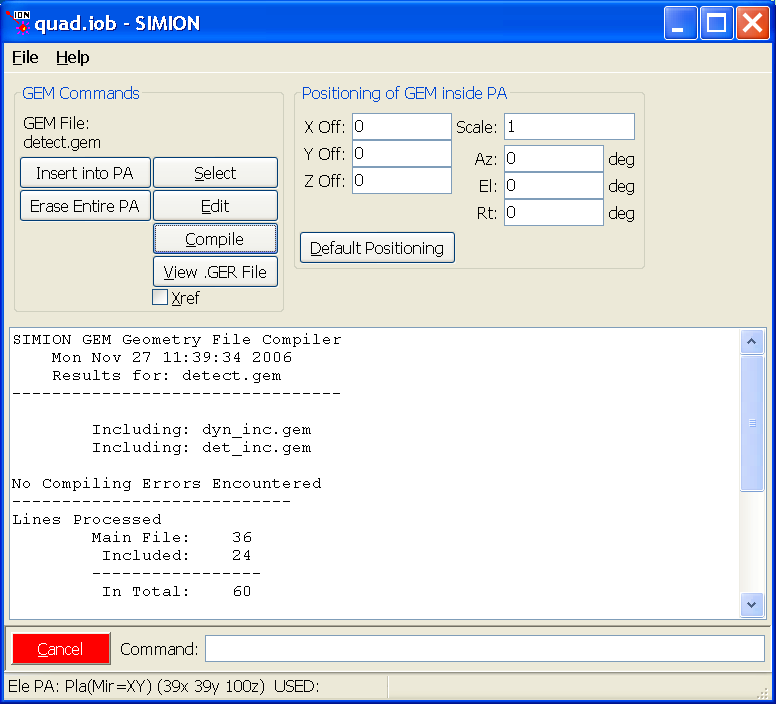

Geometry file (GEM) compilation.

_images/sltools_main.png

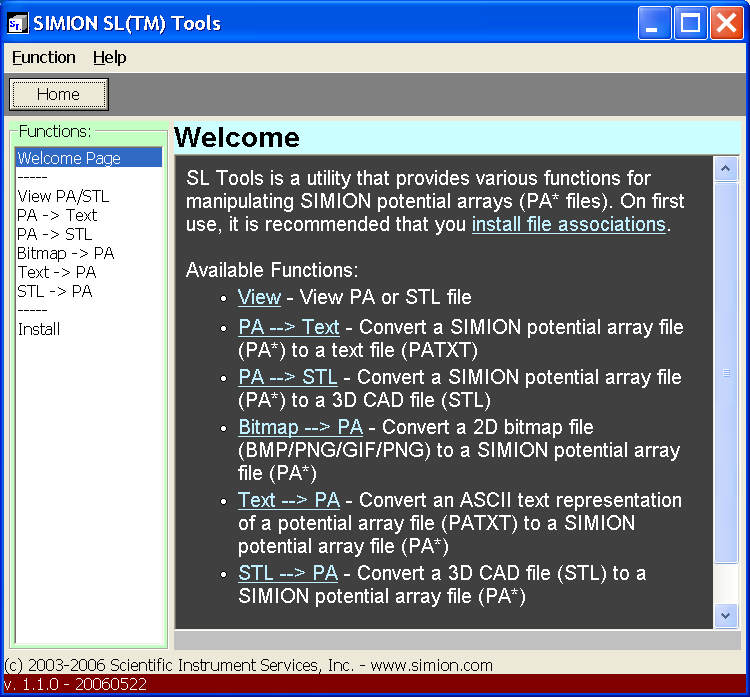

_images/s8-sltools.png

SL Tools utility with CAD conversion and PA import/export functions. See also SL Tools Tutorial.

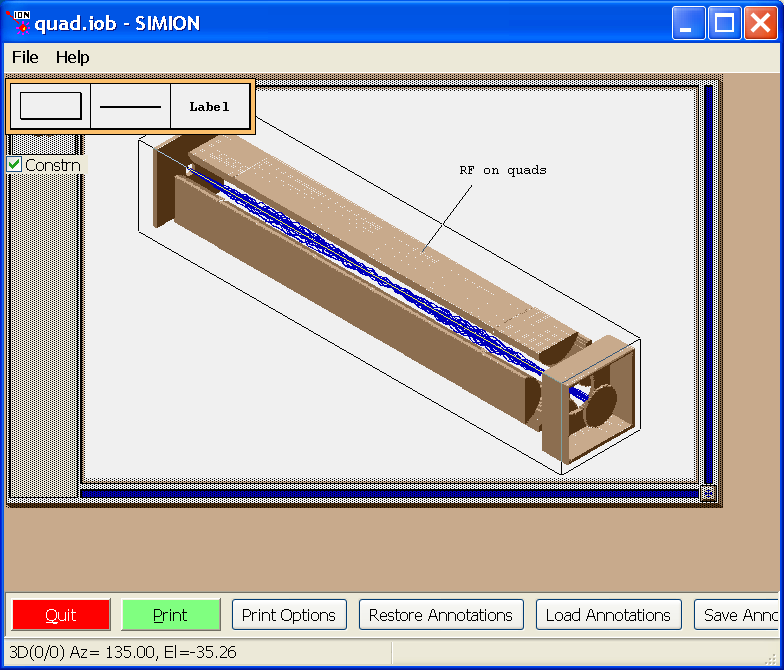

_images/s8-print.png

Image annotation screen (before printing).

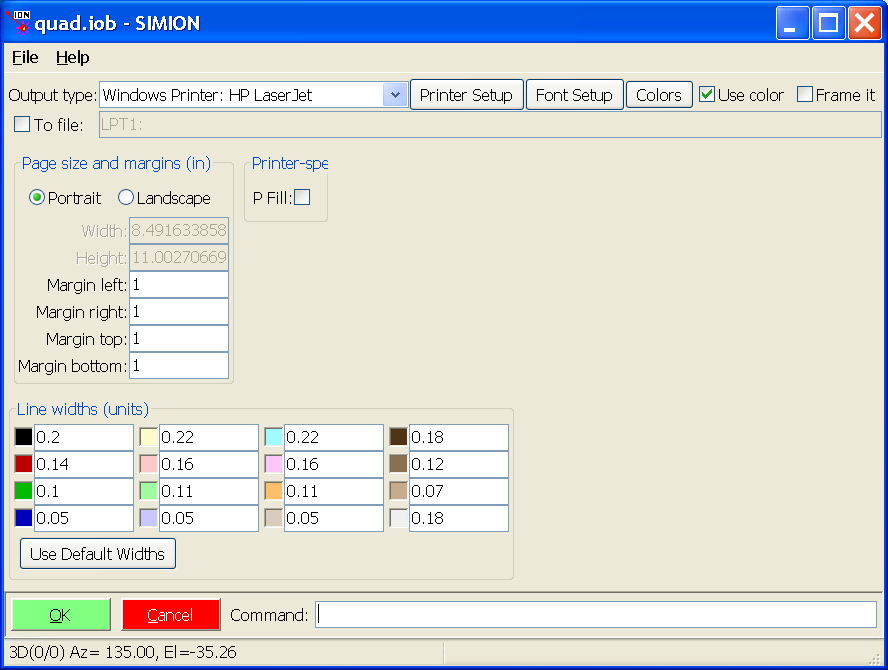

_images/s8-print2.png

Print/image export options screen.

Einzel Lens Example

_images/einzelmodify.png

Einzel lens geometry (three cylindrical lenses).

_images/einzelcon2.png

Equipotential lines showing electric field.

_images/einzelzoom.png

Particles flying through lens.

See also A Tour of the SIMION Demo and Lens.

Buncher Lens Example

_images/buncher.png

Buncher lens example (“buncher”). The problem is to slow a packet of ions so that they converge in time. The trick is to have them decelerate in a linear field and then (when they are in the middle of it) chop the field to zero. Thus the leading ions will be going slower than the trailing ions and they will bunch together at some point down stream.

Ions in flight, along with a trace of times of ion splats against the electrode. Notice that ion splat times are near identical, as desired in an ion buncher.

RF Quadrupole Example

For additional information, see Quadrupole Mass Filter.

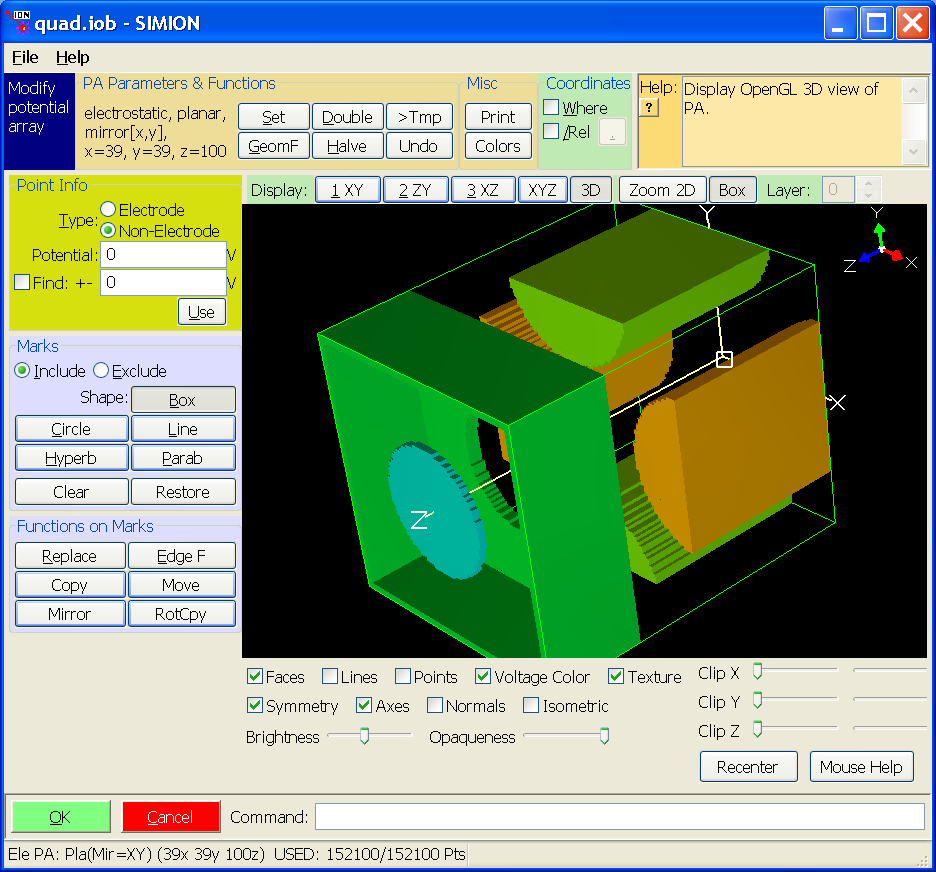

_images/s8-modify-quad.png

SIMION Modify geometry screen showing exit section of quadrupole.

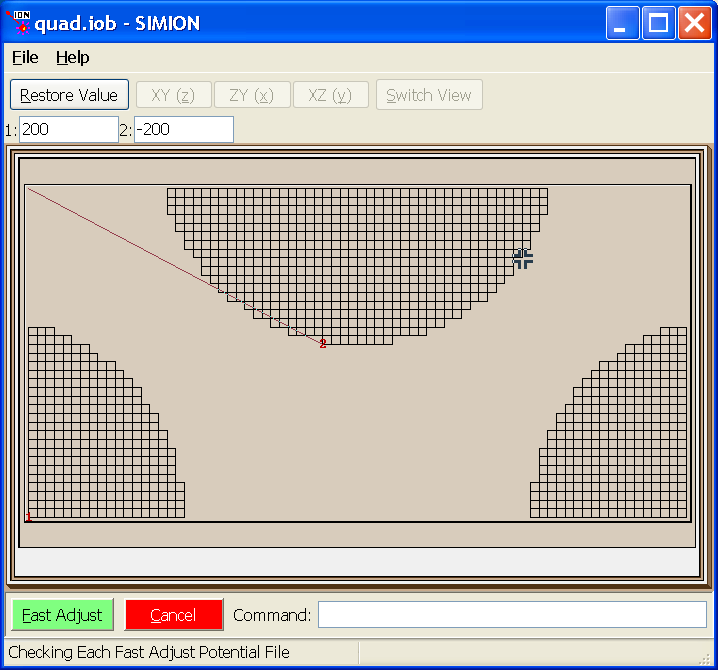

_images/s8-fast.png

Fast adjust voltages on electrodes.

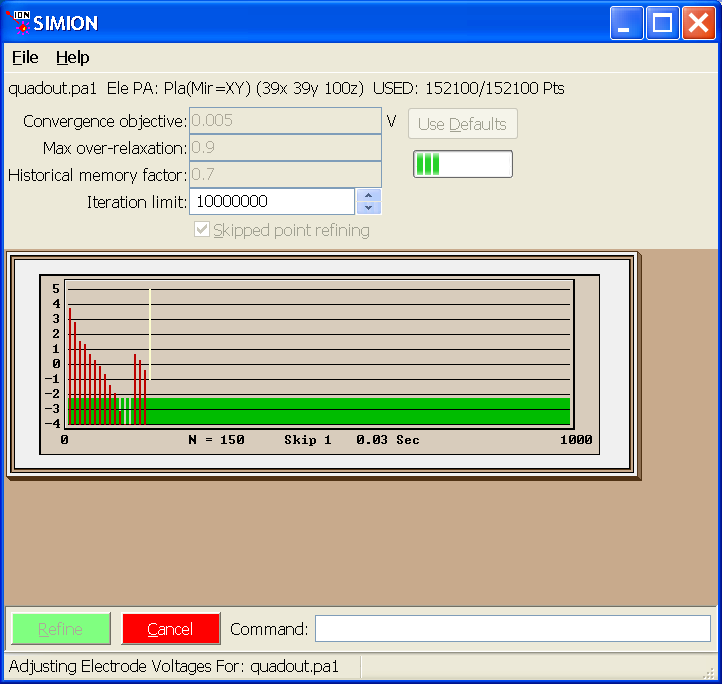

_images/s8-refine.png

Refining potential array.

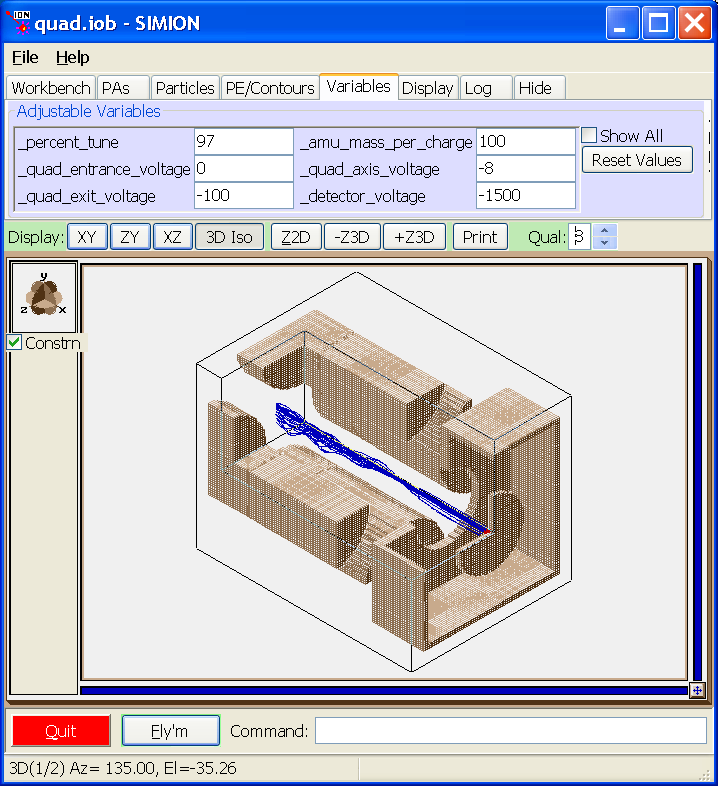

_images/s8-cut-quad.png

Cut inside quadrupole to see trajectories.

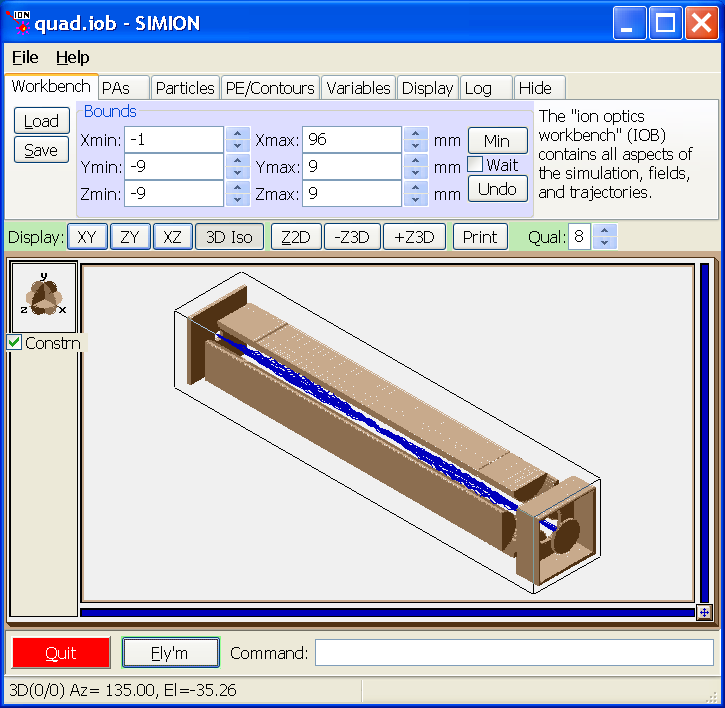

_images/s8-workbench.png

Workbench definition size.

_images/s8-pas.png

List of PA instances in workbench.

_images/s8-pe.png

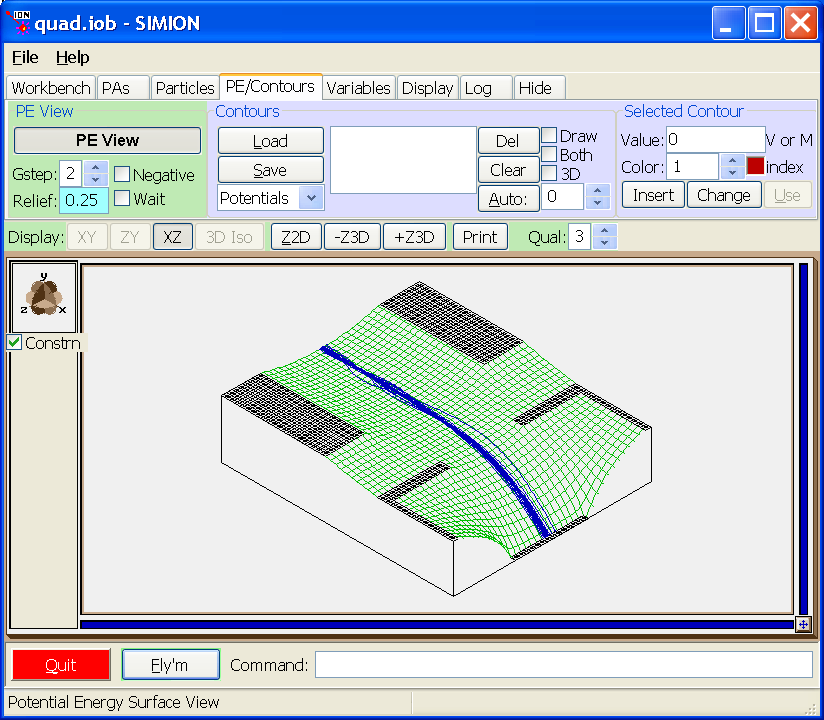

Potential energy surface.

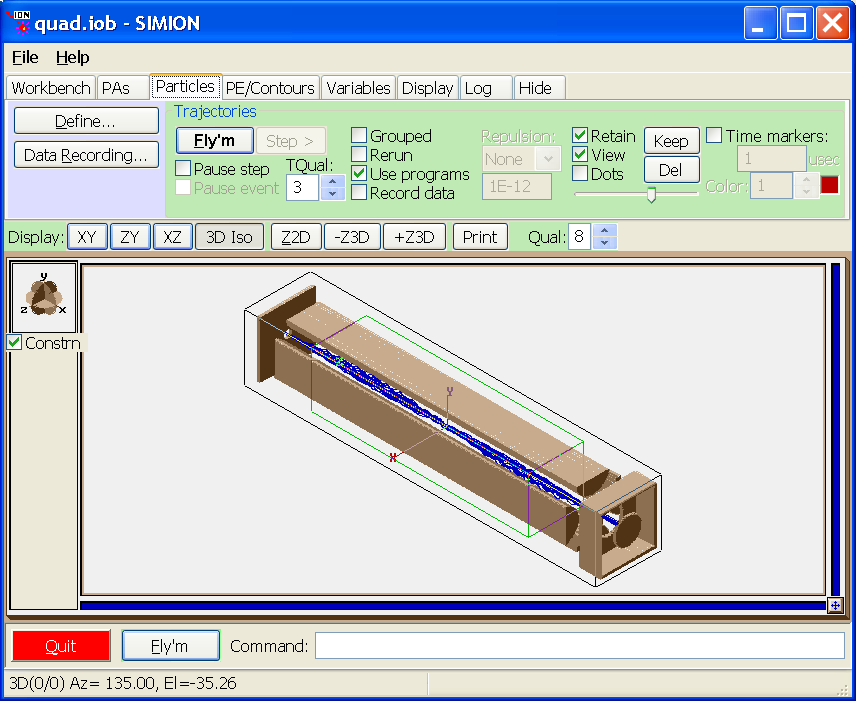

_images/s8-particles.png

Particle flying.

_images/quad_3.png

Particle flying, side view.

_images/s8-define.png

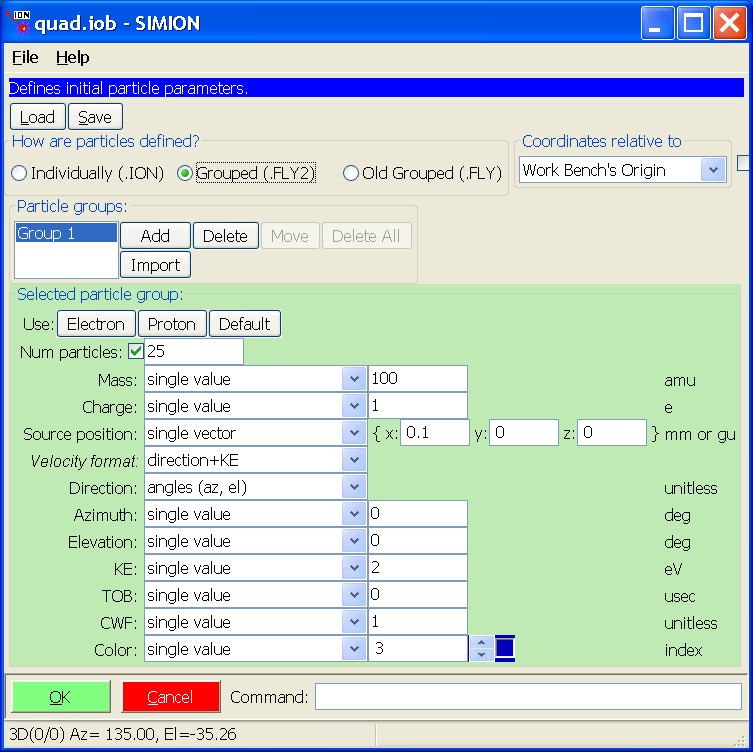

Define particle initial conditions.

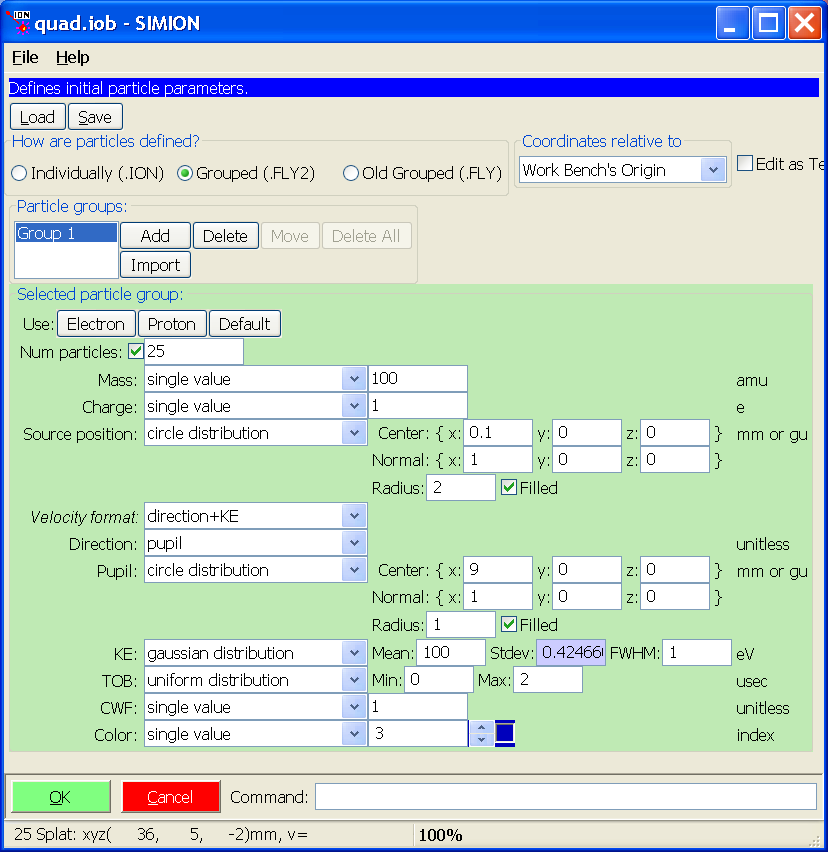

_images/s8-define-complex.png

More complex example of defining particle initial conditions.

_images/s8-record.png

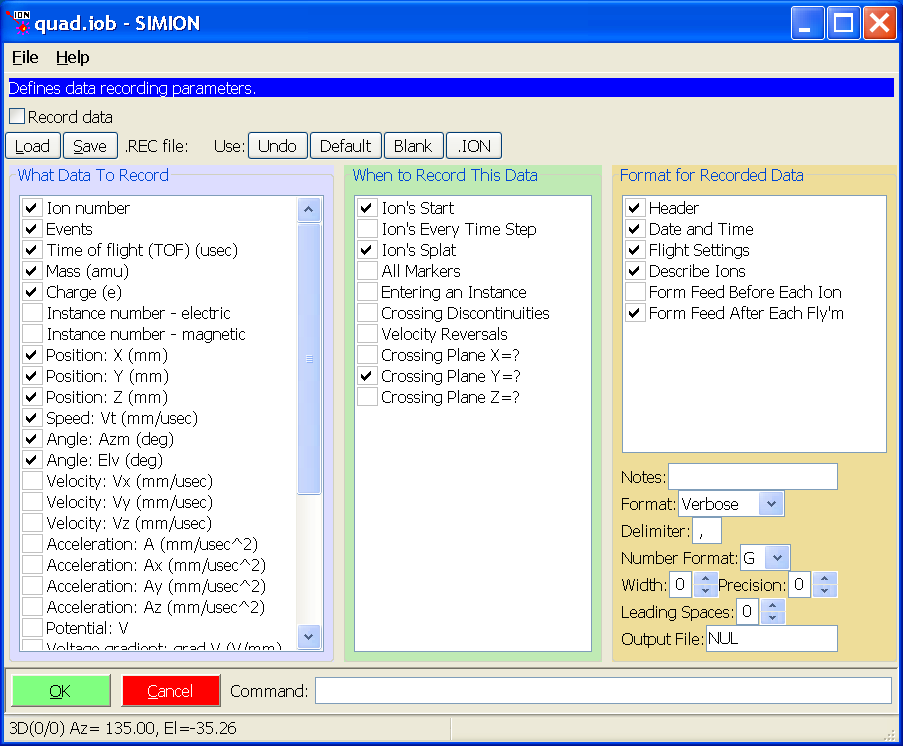

Data recording screen.

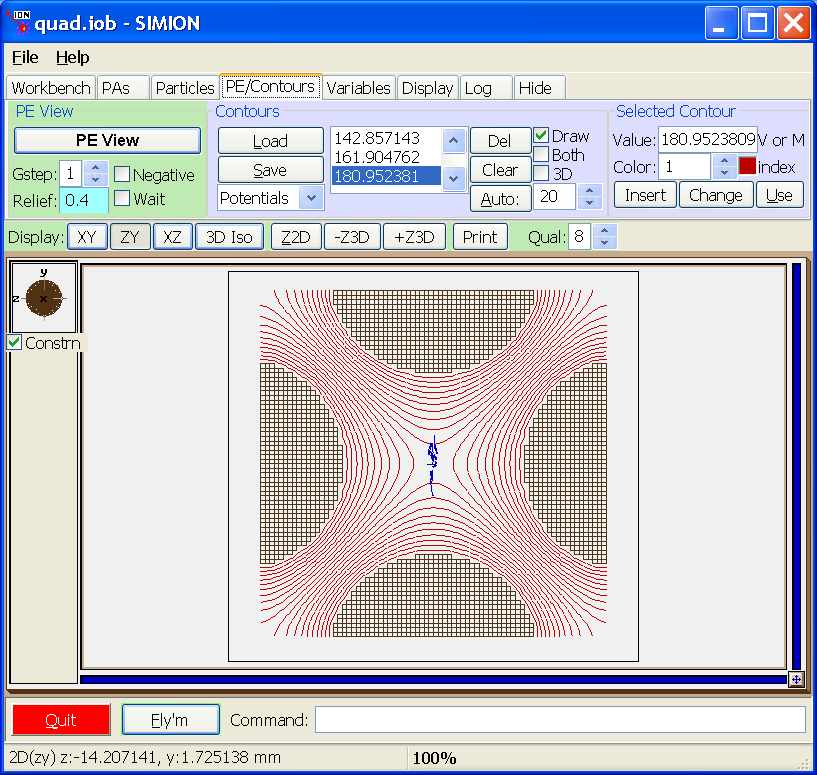

_images/s8-contours-quad.png

Equipotential lines in quadrupole.

_images/s8-pe-quad.png

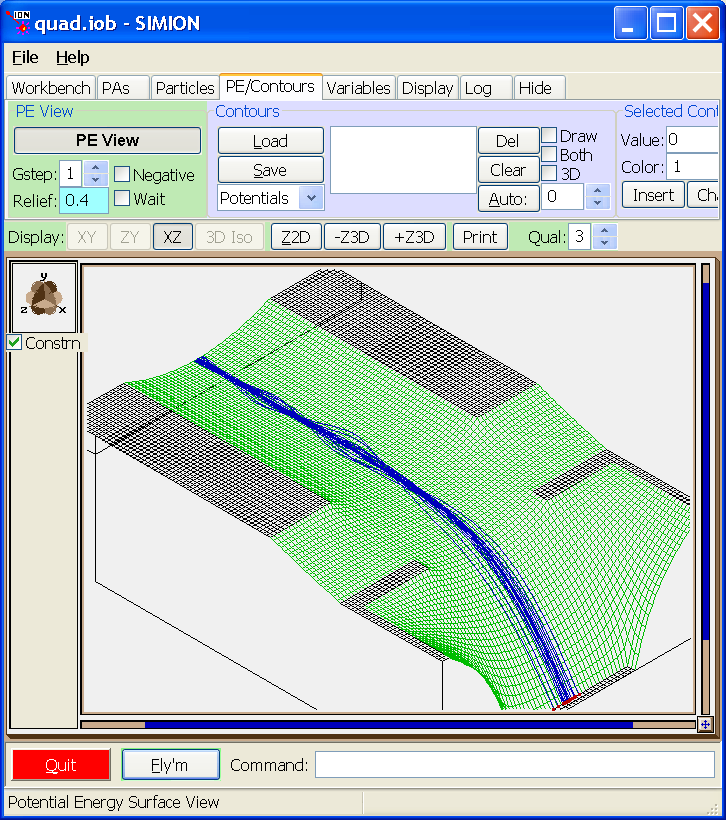

Potential energy surface of quadrupole.

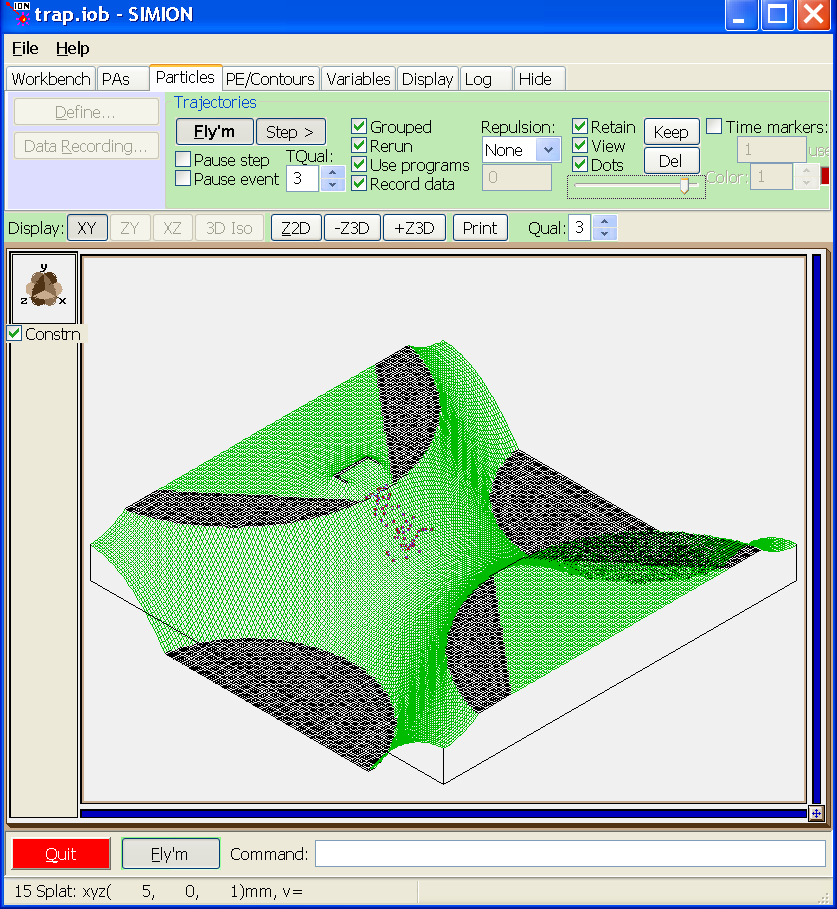

_images/s8-pe-trap.png

Undulating potential energy surface of ion trap with ions flying as dots.

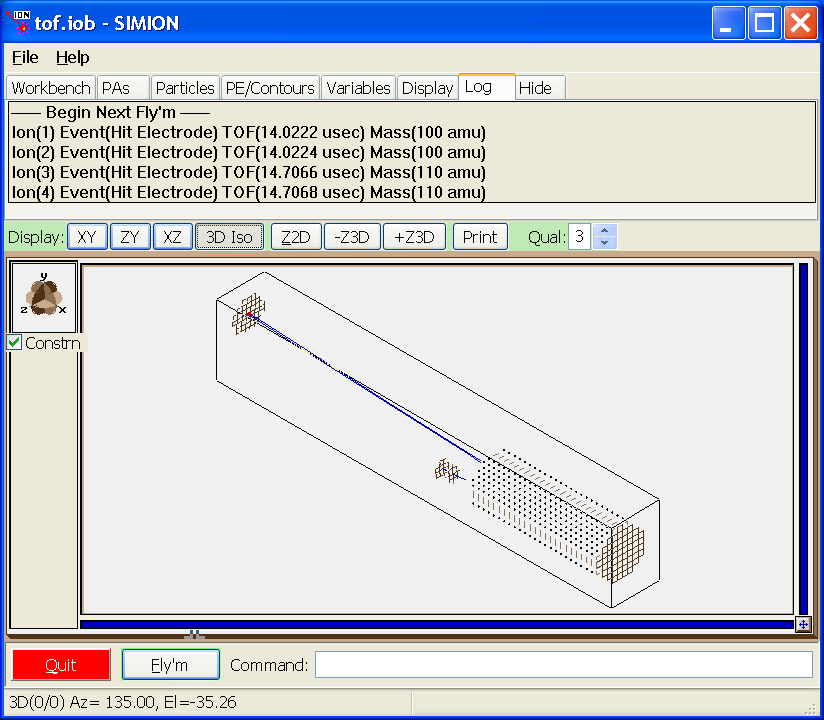

_images/s8-tof.png

Time of flight example showing data recording results in Log window.

_images/s8-variables.png

User adjustable variables in quadrupole example.

For additional examples, refer to the SIMION 2019 Supplemental Documentation.

RF Quadrupole Ion Trap Example

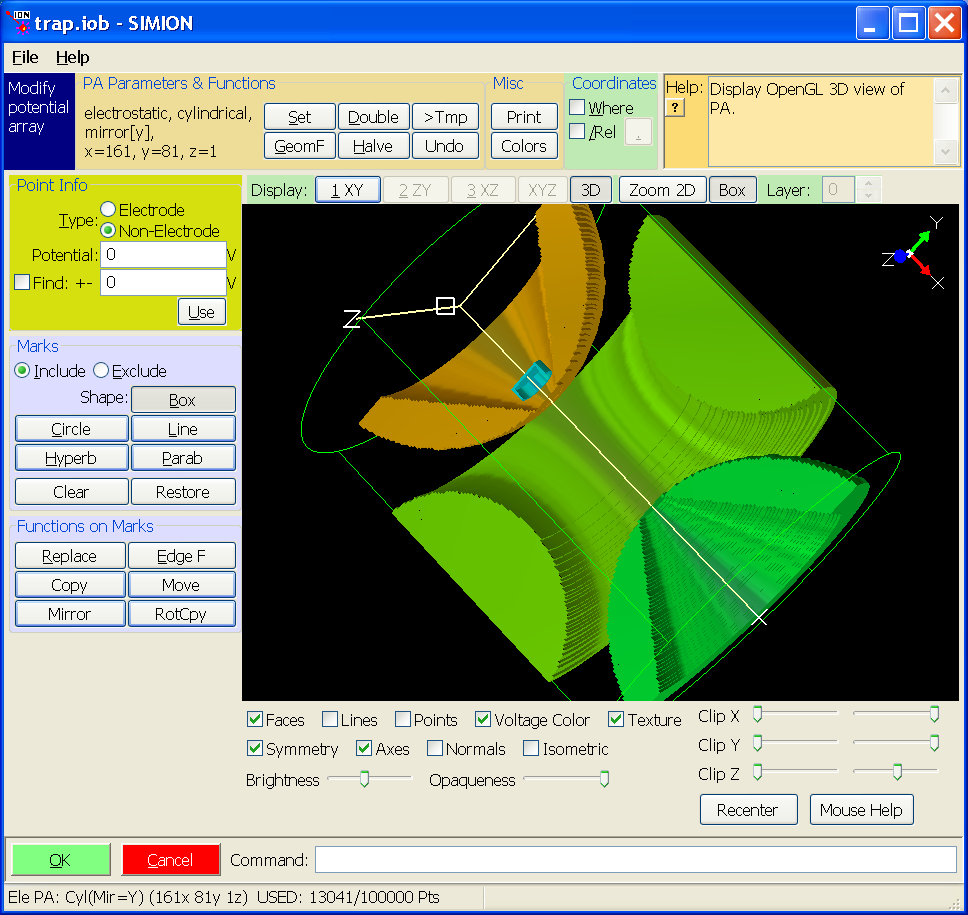

_images/trap_modify3d.png

SIMION Modify geometry screen showing 3D quadrupole ion trap.

_images/trap_view3d.png

3D quadrupole ion trap, with adjustable variables.

_images/trap_pe.png

3D quadrupole ion trap, potential energy view.

_images/trap_dots.png

3D quadrupole ion trap, particle motion (showing heavy ions in largest shell).

See also Paul Trap.

Time of Flight Example

_images/tof_view3d.png

3D view of time of flight system.

_images/tof_view3d_cut.png

Cutway to see particle inside reflectron.

_images/tof_pe.png

PE view of reflectron.

_images/tof_particles.png

TOF particle definitions.

See also Time of Flight

Lens Tuning Example

_images/tune_view3d.png

SIMION “tune” example, showing a user program to tune a lens. A simple three element fast adjust lens is provided for tuning. The middle electrode is adjusted via user program. This should serve as a simple example of how tuning problems might be approached.

See also Optimization.
